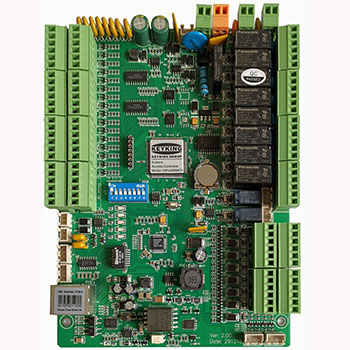

The DPU3088NT+,
(KEYKING,
3 Series, Door Controller, 4 Doors,
8 Readers, TCP/IP Enabled) is an advanced 4 doors access controller
allowing for the connection of both In and Out card readers.
Features
·32 bit ST ARM® CortexTM-M3 processor with 16MBit data memory
·Communication Modes: RS-232 (max 50ft), RS-485 (max 4000ft) or TCP/IP
·On board 100MBit real TCP/IP
·Compatible with all Wiegand reader formats from 24 to 72 Bits
·Event Flow Control
·Supports 500 Visitors
·Supports Master + Slave Group cards
·POE+, Power Over Ethernet plus
·CE, FCC, RoHS approval
Specification
·CPU: 32 Bit Processor
·8 Door Relay (NC/NO)
·8 Door Sensor (NO)
·8 Exit Button
·2 Auxiliary Output Relays
·4 Auxiliary Inputs
·8 Wiegand Readers
·RS-232/RS-485/TCPIP interface
·Up to 127 controllers per RS-485 bus
·Supports online computer polling
·Communication speed: 19200/9600/4800
·15 Time Groups for each door
·Card Capacity: 30,000
·Transaction Storage: 100,000 events
·Maximum LAN Distance: 1200 meters (4000ft) using RS-485.
·Operating Voltage: 12V DC (±10%)
·110/220 AC (50/60HZ) switched mode 12V DC 6A Power Supply c/w 13.8V DC battery charging circuit
·12VDC Output while POE+: 2A;
·Operating Current: ≤200mA
·Standby Current:≤150mA
·Working Temperature: -40C~70C
·Data Memory: 16M bit (protected)
·1 Lithium battery backup (up to 10 years data retention)
·Metal case dimensions:403mm x 384mm x 72mm
·Weight:0.2Kg (without metal case)
4.7Kg (with metal case & PSU)
Specification
CPU: | 32 bits ARM® Cortex-M4 Processor |
Cardholder Capacity: | 100,000 users |
Log Capacity: | 200,000 |
Communication: | TCP/IP 100MBPS Auto Sensing RS485, 9600Bps |
PoE: | 803.11af |
Reader Socket: | Wiegand & RS485 Bus |
Reader Amount: | 8 pcs Wiegand or RS485, combined |
Input: | 8 REX exit buttons, 8 Door sensors |
Aux Input: | 4 pcs |
Aux Output: | 2 pcs, Dry Contact |
Operating Temp: | - 20℃ ~ 65℃ |
Operating Voltage: | 12vDC, 200mA (Controller only) 12vDC, 2A (Reader connected) |
Dimensions (mm): | W123 x H214 x D33 W384 x H403 x D72 (Cabinet) |
Certificates: | CE, FCC, RoHS |
