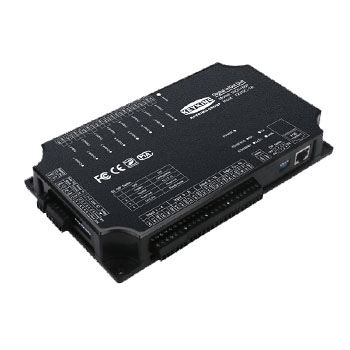

The DIO3168P, (KEYKING, 3 Series, Input Output Controller, 16 Inputs, 8 Outputs, TCP/IP Enabled) is an advanced fully intelligent Ethernet enabled controller based on a 32 bit microprocessor. It is compatible with both the V3.5 Economy and V4 Advanced range of KEYKING 3 Series access controllers.
Features
·32 bit TI ARM® Cortex M3 processor with 4MBit data memory
·Power over Ethernet
·On board 100MBit real TCP/IP
·Event Flow Control
·Includes UDP Protocol
·CE, FCC, RoHS approval
Specification
·CPU: 32 Bit Processor
·8 Output Relays (NC/NO)
·16 Inputs (NO)
·RS-232/RS-485/TCPIP interface
·POE: 802.1af
·TCP Communication speed: 100M
·15 Time Groups for each relay
·Transaction Storage: 25,000 events
·Operating Voltage: 12V DC (±10%)
·110/220 AC (50/60HZ) switched mode 12V DC 6A Power Supply c/w 13.8V DC battery charging circuit
·Operating Current: ≤200mA
·Standby Current:≤150mA
·Working Temperature: -40C~70C
·Data Memory: 4M bit (protected)
·1 Lithium battery backup (up to 10 years data retention)
·Metal case dimensions：403mm x 384mm x 72mm
·Weight：0.2Kg (without metal case)
4.7Kg (with metal case & PSU）
