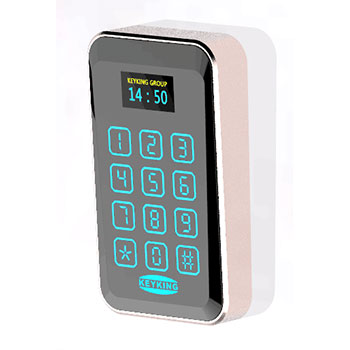

TA7002-P a new outstanding T&A standalone controller with OLED screen and support POE. The OLED screen will display time and staff ID info. This system greatly improved the T&A simplicity and offered cost saving on traditional tags. When TA7002-P works as an access controller, the traditional key is no longer needed, employees can enter their special space by flashing authorized cards. TA7002-P can by itself control a door, both in and out, at least one reader is needed for one side, and the other side can be controlled either by a reader or a Rex Button. This system provides a more convenient and secured access environment, it also makes it possible for managers to verify the attendance in time. TA7002-P is compatible with a big range of applications including, building management, enterprise management, government, military and prison.
Features
•Multi-Technology Card Reader
- P：125KHz – LF, RF, EM, TK, HID Prox., AWID and others
- U：13.56MHz – HF, Mifare, DesFire, NFC, PKI Encrypted, CPU, FIPS-201*
•Wiegand In: Wiegand Reader, 4-6 Wire
•Out-Reader
•Reader & Controller combined
•Setting by Keypad, and from Sphinx also
•Seamless Operation and recovery for On-Line and Off-Line modes
•On-Line: connected to SPHINX Software,
•Off-Line: Stand-Alone, not connected to server
Specification
•Work Mode：
Card Mode；
PIN Mode；
Card/PIN Mode；
Card + PIN(interval time 8 sec)
•Supported User Number：30000 pcs
•PIN User Number：10
•Communicate Frequency：
125KHZ: E: EM；
13.56MHZ: M: Mifare；U：CPU
•Read Range：3-15CM
•Outputs：NC/NO，30VDC，5A
•Power Supply：12VDC+10% ，200MA
•Dimension：120mm (H) x 70mm (W) x 30mm (D)
Specification
•Work Mode：
Card Mode；
PIN Mode；
Card/PIN Mode；
Card + PIN(interval time 8 sec)
•Supported User Number：30000 pcs
•PIN User Number：10
•Communicate Frequency：
125KHZ: E: EM；
13.56MHZ: M: Mifare；U：CPU
•Read Range：3-15CM
•Outputs：NC/NO，30VDC，5A
•Power Supply：12VDC+10% ，200MA
•Dimension：117mm (H) x 86mm (W) x 22mm (D)
