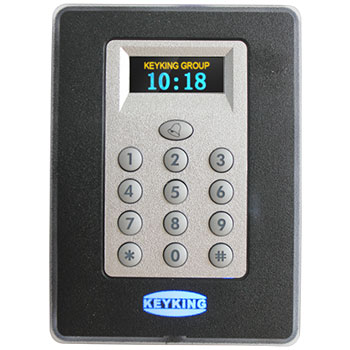

The TA7003NT, (KEYKING, 3 Series, Standalone,
1 Doors, 2 Readers) is an advanced standalone allowing for the connection of external
reader with REX button for exit.
Features
•32 bit processor with 4M bit data memory
•Built-in Proximity, Mifare, HID Reader
(Option)
•Blue backlight.
•Work Mode: Card / PIN, Card + PIN, PIN
only.
•OLED dual color display to indicate Clock,
Company, Name, Card No.
•Communication: TCP/IP
•Compatible with all Wiegand reader format
from 24 to 72 Bits
•Events Flow Control
•Supports 500 Visitors
•Including UDP Protocol
•CE, FCC, RoHS approval
Specification
•CPU: Texas Instrument ARM® Cortex-M3
•1 Door Relay (NC/NO)
•1 Door Sensor (NO)
•1 Exit Button
•1 Auxiliary Output Relay
•2 Auxiliary Inputs
•1 Wiegand Reader Input
•RS-232/RS-485 interface
•Up to 127 controllers per RS-485 bus
•Supports online computer polling
•TCP Communication speed: 100M
•15 Time Groups for 1 door
•Card Capacity: 30,000
•Emergency Cards: 10
•Transaction Storage: 15,000 events
•Maximum read range*: E: 150mm, H: 10mm; M:
50mm (2.00 in.)
•Modulation: E/H: 125KHz; M: 13.56MHz
•Compatible cards: E: EM Proximity card; H:
HID proximity; M: Mifare S50, S70, KK1208M1 CPU cards, ISO14443A
•Communication Speed: 10/100M
•Operating Voltage: 12VDC(±10%)
•Operating Current: ≤100mA
•Standby Current:≤80mA
•Working Temperature: -30°C to 65°C (-22°F
to 150°F)
•Operating Humidity: 0 to 95%
•Dimensions: 117×86×22mm
•Weight: 290 g (0.63 lbs)
Specification
•CPU: Texas Instrument ARM® Cortex-M3
•1 Door Relay (NC/NO)
•1 Door Sensor (NO)
•1 Exit Button
•1 Auxiliary Output Relay
•2 Auxiliary Inputs
•1 Wiegand Reader Input
•RS-232/RS-485 interface
•Up to 127 controllers per RS-485 bus
•Supports online computer polling
•TCP Communication speed: 100M
•15 Time Groups for 1 door
•Card Capacity: 30,000
•Emergency Cards: 10
•Transaction Storage: 15,000 events
•Maximum read range*: E: 150mm, H: 10mm; M: 50mm (2.00 in.)
•Modulation: E/H: 125KHz; M: 13.56MHz
•Compatible cards: E: EM Proximity card; H: HID proximity; M: Mifare S50, S70, KK1208M1 CPU cards, ISO14443A
•Communication Speed: 10/100M
•Operating Voltage: 12VDC(±10%)
•Operating Current: ≤100mA
•Standby Current:≤80mA
•Working Temperature: -30°C to 65°C (-22°F to 150°F)
•Operating Humidity: 0 to 95%
•Dimensions: 117×86×22mm
•Weight: 290 g (0.63 lbs)
