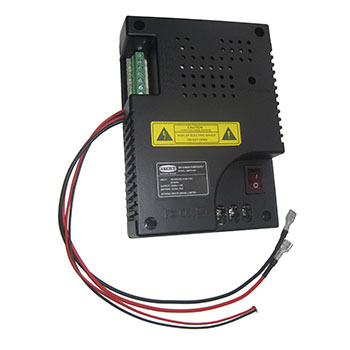

SMPS1260 is an input
voltage of 100-240V, output current 12VDC/6A Switching Power Supply, input with a reliable
anti-surge, lightning, overcurrent protection circuit; 12VDC including 5 groups
output, each group comes with self-recovery insurance, can guarantee a reliable
running when one group encounter overcurrent or short circuit, overcurrent
fault, does not affect other group output; and extra group is 13.8V/300mA battery float voltage output for
maximum battery backup 12V/7AH charge; city power and battery backup is seamless
handover, ensuring the system can continue to use simultaneously when city power
cut off. At the same time, provide a reliable power supply protection circuit
to prevent battery discharge, when the backup battery voltage is lower than
10.8V, output will cut off automatically.
Features
•AC input fuse
•DC output Insurance
•DC output voltage regulator
•Backup battery connector
•Six outputs
•High output current
Specification
•Input Voltage: 100-240VAC
•Output Voltage: 9-16VDC,
•Output Current：Single Line: 1.35A, Total Output: 6A
•Demension: 110.5mm (W) x 152mm (H) x 45mm (D)
