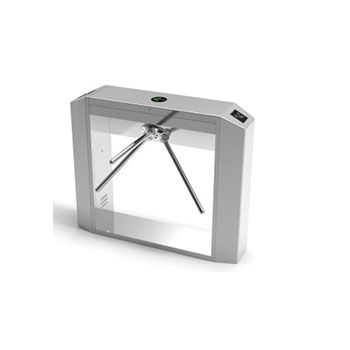

Octagonal Bridge Tripod Turnstile MODEL:KK-T6-B

Octagonal Bridge Tripod TurnstileKK-T6-B

Listing date:2018-01-01 Updated version:V1.00 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

Applications

Office space: Business buildings, government agencies, etc.

Science and education units: Universities, research institutes, kindergartens, libraries, museums, etc.

Commercial service places: Supermarkets, business buildings, hotels, banks, convention centers, etc.

Leisure and entertainment venues: Stadiums, parks, scenic spots, playgrounds, leisure clubs, etc.

Transportation stations: Bus stations, railway stations, high-speed rail stations, subway stations, ferries, airports, etc.

Specification

Assembly: Chassis, movement, control board and power supply

Housing: Brushed stainless steel, SUS304

Dimensions: L1200*W280*H980mm

Turntable steering: One-way/two-way

Movement: Motor or solenoid valve

Opening time:0.2 seconds

Anti-reverse: Anti-reverse function to ensure one card per person

Input::AC220V±10%,50Hz±4%, automatically converted to the working voltage of the Turnstile DC24VDC12V

Environment: Indoor and outdoor recommended rainproof shed

Operating temperature: -10℃~60

Relative humidity: 5% 95%, no condensation

Speed:>30 people / minute, the indicator light shows

Working noise:<50DB

Drop arm length: 500mm

Aisle Width:550mm

Weight:45kg

Input interface: Dry contact signal, 12V level or 12V pulse width 100ms

Communication Interface:RS485 (distance 1200 meters), TCP/IP
