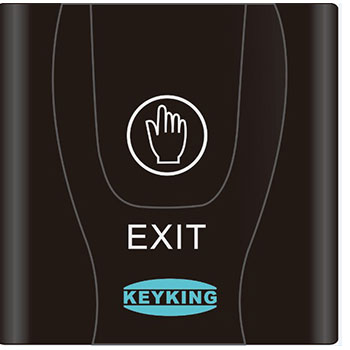

BT6609 this TouchPad
REX Button is rugged, weather-resistant and attractive in design. Blue backlit LED
assist operation in low or no light conditions. This release button product has
advanced touchpad features for wide compatibility with different controller types.
Specification
•Maximum detect range:
50mm
•Output: Dry contact (NO,
COM)
•Operating Voltage:
7-12VDC
•Operating Current: ≤50mA
•Standby Current:≤10mA
•Working Temperature:
-30°C to 65°C (-22°F to 150°F)
•Operating Humidity: 0 to
95%
•LED Control Input:
Normal--Blue; Active--Green.
•Dimensions: 86mm L x
86mm W x 20mm D
•Weight: 200 g
