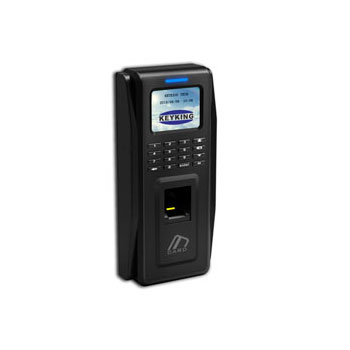

Fingerprint Reader MODEL:FPC2002-U

Fingerprint ReaderFPC2002-U

Listing date:2015-01-01 Updated version:V1.00 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

Features

·TFT Color display, Elegant,
·Standard 26/34 Bits Wiegand output format, which can be compatible with any kind of Access Controller,
·Dustproof, waterproof features, suitable for any installation site,
·WDT watchdog, having a power-on self-test function,
·Fast fingerprint matching speed, 3,000 fingerprints within one second,
·500dpi optical fingerprint sensor, anti scratch,
·The world s leading fingerprint algorithm, refusing false fingerprints,
·Support Chinese and English operation menu,
·Background image and company Logo display can be replaceable,
·Display: card number, name, employee number, a variety of information,

Applications

·Security Reader of Access Control
·Networked security for IBS buildings, financial and research institutes
·Time & Attendance for offices and factories

Specification

Description:Fingerprint reader, FP Standalone
Interface:TCP/IP
CPU:400MHz DSP
Memory:4MB flash + 8MB RAM
Fingerprint Sensor:500 dpi optical sensor
Fingerprint Identification Speed:1 to 2,000 identification in 1sec
Fingerprint Capacity:3,000 templates
RF Card:13.56MHz
External Reader:Wiegand Input Reader
Display:TFT, 320×240
Keypad:Function Keypads, 3×4
Operation Modes:Card/FP, Card + FP, ID+FP
Wiegand Output:Configurable, 26/34 bits
Operating Voltage:12VDC
Dimension:197mm×88mm×35mm
