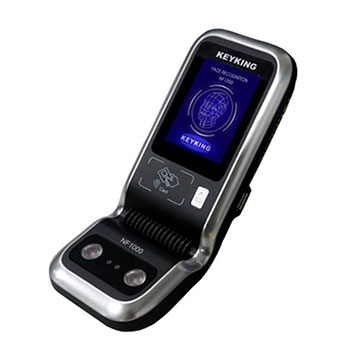

NexFace Recognition MODEL:NF1000-E

NexFace RecognitionNF1000-E

Listing date:2016-05-01 Updated version:V1.00 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

NF1000 appear with generous and elegant; along with user-friendly designed operate interface, voice prompts and software. The series take active auxiliary light source technology to achieve higher light applicability. It can also I/O data via USB and it can offer online work management, totally standalone available.

Features

•Use Face Image+ V4.0 (the latest multiple light sources face recognition algorithm) and DSP  processor to meet customers’ need ,provide higher face analyze speed and accuracy

•with super light adaptation and high face identify accuracy regardless racial, sex, expression, or beard or haircut.

•Use harmless auxiliary LED to provide best identify accuracy in day and night.

•Provide high stability with low energy consumption.

•Automatic sleep available for environmental friendly

•TFT touch screen, friendly GUI interface and provide voice prompts.

•Multiple identify mode:Face, Card, PIN, & all kinds of combined.

•Higher quality and reliability based on ISO:9001

Specification

•Camera: Double professional built-in cameras

•Capacity: 1:N   Max user: 1000

•Card: 2,000; PIN: 2,000

•Face Pictures: 5,000 including enrolled

•Built-in Reader: Prox / Mifare reader (Option)

•Working Frequency: Prox--125KHz;Mifare--13.56MHz

•Supported Card: EM4100 or compatible card;Mifare-1 smart card

•Output: WG26, WG34

•Identify Time:≤1 sec

•Analyze Accuracy: ≥ 99%

•Angle Range: Horizontal; ±20°, Vertical; ±20°

•User Height:145-195CM

•Working Distant:30-80CM

•Communication: TCP/IP, RS485, USB disk

•Network Monitoring: Available

•Tamper: Available

•Timing: RTC Built-in

•LCD: TFT,2.8’ LCD, 240*320

•Touchscreen: Available

•Operate Reminder :Available(Voice、Indicator)

•Language: English, Chinese

•Working Environment: 0-20000LUX,

•Temperature:0°C~45°C

•Humidity:20%--80%

•Operating Voltage:12VDC

•Operating Current: ≤500mA

•Standby Current: ≤30mA

•Dimension: 190mm (H) × 80mm (W) × 31mm (D)

•Weight: 200 g
