Application

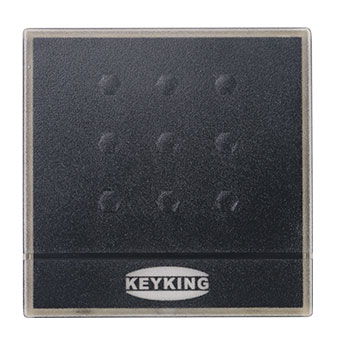

This superior quality Proximity reader is rugged, weather-resistant and attractive in design. The product was designed to reduce stock levels. Blue backlit LED assist operation in low or no light environment.With the internal sounder, 6609P provides superior accessibility.
Features
·Smooth attractive design, with all-weather
·Wiegand bits output.
·Dual color LED:Blue/Green .
·Green connector for wiring.
·Supports Multi Prox cards:AWID EM,2308,HID,KK234,KK250
·6609P is manufactured in SECUSYS’s ISO:9001 registered facility.
Specification
·Maximum read range*: 150mm (6.00 in.)
·Modulation: ASK at 125 kHz
·Supports Multi Wiegand Output:
AWID: Follow card, up to 58bits
EM, 2308: Option-W26/34
HID: Follow card, W26/27/34/35/37 and so on
KK: Follow card, W34/50 bits
·Operating Voltage: 7-12VDC
·Operating Current: ≤100mA
·Standby Current:≤50mA
·Working Temperature: -30°C to 65°C (-22°F to 150°F)
·Operating Humidity: 0 to 95%
·LED Control Input: Dry Contact,Normally Open
·Buzzer Control Input: Dry Contact,Normally Open
·Dimensions: 86mm L x 86mm W x 21mm D (6.59 in. x 6.59 in. x 0.83 in.)
·Weight: 290 g (0.63 lbs)
