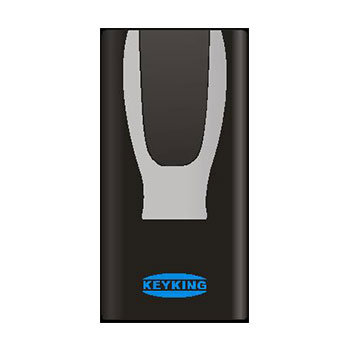

Mifare Smart Card Readers MODEL:6610M-C

Mifare Smart Card Readers6610M-C

Listing date:2013-05-01 Updated version:V1.00 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

Application

This superior quality Proximity reader is rugged, weather-resistant and attractive in design. The product was designed to reduce stock levels. Blue backlit LED assist operation in low or no light environment.With the internal sounder, 6610M provides superior accessibility.

Features

·Smooth attractive design, with all-weather

·Wiegand bits output.

·1 Led with 2 colors and integral sounder for programming and operation.

·Green connector for wiring.

·Supports all 13.56Mhz philips s50,Mifare-1 compatible cards

·6610M is manufactured in keyking’s ISO:9001 registered facility.


Specification

·Maximum read range: 80mm (3.15 in.)
·Modulation: 13.56MHz
·Compatible: 26/34 bits wiegand Mifare cards
·Operating Voltage: 7-12VDC
·Operating Current: ≤100mA
·Standby Current:≤50mA
·Working Temperature: -30°C to 65°C (-22°F to 150°F)
·Operating Humidity: 0 to 95%
·LED Control Input: Dry Contact,Normally Open
·Buzzer Control Input: Dry Contact,Normally Open
·Dimensions: 86mm L x 43mm W x 21mm D (6.59 in. x 3.30 in. x 0.83 in.)
·Weight: 290 g (0.63 lbs)
