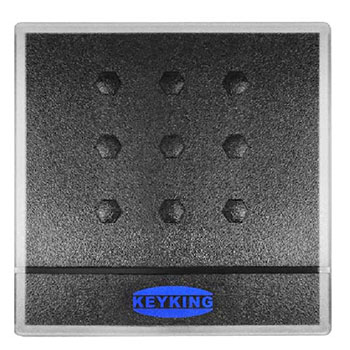

CPU Reader MODEL:6609U-BLT

CPU Reader6609U-BLT

Listing date:2015-01-01 Updated version:V1.00 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

Application

       Access Control, T&A, Car Parking, Identify, POS, etc..

Reader Model Define

Features

·Smooth attractive design, with all-weather

·Bluetooth built-in, 1-15 meters range, compatible with aQrRock.apk for Android.

·1 LED with 2 colors and integral sounder for programming andoperation.

·Green connector for wiring.

·Multi Mode: Mifare SN, Mifare Sector,  CPU card.

·Communication Ecryption: 3DES

·Supports Wiegand RFID card transmission formats. The output will be different with different type CPU Master Smart card.

Specification

Mean:CPU
Frequency:13.56MHz
Card:S50, S70,KK1208M1
Encode:3Des
Range:5 cm
Vol tage:7~12 VDC
Current:≤100mA
Temperature:-30°C to 65 °C
Dimension:86mm×86mm×20mm
