Access Controller MODEL:DPU3048-OS

Access ControllerDPU3048-OS

Listing date:2022-1-1 Updated version:V3.13 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

The DPU3048-OS, (KEYKING, 3 Series, Door Controller, 4 Doors, 8 Readers, TCP/IP Enabled) is an advanced 4 door access controller allowing for the connection of both In and Out card readers.

Features:

• 32 bit ST ARM® CortexTM-M4 processor
• 10/100M based TCP/IP communication
• Power over Ethernet (POE+, 30W)
• Backup battery charger, battery Monitor
• Compatible with Wiegand and OSDP reader
• Compatible with all Wiegand reader formats from 24 to 72 Bits
• 24 sets of flow control setting
• Supports Lock down feature
• Supports master + slave cards
• Supports Multi groups cards
• Supports double confirmed by center
• Supports user PIN identify
• Supports Anti-PassBack
• Multiple door status working modes
• Long memory storage up to 20 years during power off
• CE, FCC, RoHS Certificated

Specifications

Model DPU3048-OS
Door 4 (Two Way)
CPU ARM Cotex-M4
Communication TCP/IP 10/100M; RS485
POE 803.11at
Cardholder Capacity 100,000/250,000
Transaction 500,000/1,500,000
Wiegand Reader 8
OSDP Reader 8
OSDP Bus 4
Aux Input 4
Aux Output Relay 4
Exit Button 4
Door Sensor 4
Voltage 9-15VDC
Current Current ≤ 0.3A (only controller); Current ≤ 3A (with card reader)
Supervisor Support
Working Temperature -20°C~65°C
Dimension 183*133*20mm
Weight 275g
Certificate CE,FCC,RoHS,MA

System diagrams

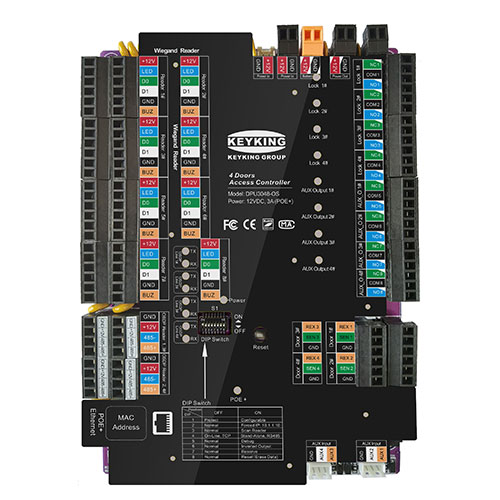

Pictures:
