Access Controller MODEL:DPU-OSDP24

Access ControllerDPU-OSDP24

Listing date:2022-1-1 Updated version:V3.13 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ
The DPU-OSDP24, (KEYKING, OSDP Series, Door Controller, 2 Door, 4 Readers, TCP/IP Enabled) is an economic 2 doors access controller allowing for the connection of both In and Out card readers.
The 1 Series of access controllers can be used in a standalone or networked configuration mode, are compatible with the 1 & 3 Series access controllers and Lift Controllers and Multi IO Controllers. The 1 Series controllers can be connected to a TCP/IP network, and work perfect with Sphinx.

Features

• 32 bit ST ARM® Cortex M4 processor with 16MBit data memory
• Communication Modes: TCP/IP, 10/100M Based
• Compatible with all OSDP reader
• Event Flow Control
• Support 500 Visitors
• Support Master + Slave Group cards
• Support TCP secondary connection
• Support Anti-PassBack
• Support user password, card + password, super password to open door
• Support time schedule for door status control and door access control
• Support OSDP Readers, the encrypted transmission between reader and controller is more secure
• Support combine card , master & slave card, group card, handicap card etc. various way to open the door
• Support ‘Door Open too Long’, ‘Door Forced Open’ etc various alarm output
• Support remote control for any controller components
• Support center confirmation and single time password confirmation for door opening
• Support 24 sets of flow control setting by input&output, support flow control by event
• Support consumption channel
• Support enable boss card to force the door normally open or normally close
• Support count up the number of people in areas and limit Max &Min number of the people
• Support QR code/ID card verification of visitors
• Support AES128 encryption in TCP/IP mode
• Support IEEE802.1X
• Support relay output in reverse
• Support flow control between offline controllers
• Support arm linkage and disarm linkage
• 20 years of data storage after power off
• CE, FCC, RoHS Approval

Specification

CPU: 32 Bit Processor
Data Memory: 16M bit (protected)
Door Relay: 2 Door Relay (NC/NO)
Door Sensor: 2 Door Sensor (NO)
Exit Button: 2
Auxiliary Output Relays: 2
Auxiliary Inputs: 2
Readers: 4 pcs OSDP Readers
Communication: TCP/IP, 10/100M Based
Time Groups: 15 Time Groups for each door
Cardholder Capacity: 30,000 users, can be expanded to 100,000 users
Transaction Storage: 200,000 events, can be expanded to 500,000 events
Maximum LAN Distance: 1200 meters (4000ft) using RS485.
Operating Voltage: 12V DC (±10%)
Power: 110/220 AC (50/60HZ) switched mode 12V DC 6A Power Supply c/w 13.8V DC battery charging circuit (Charging Inspector)
Operating Current: ≤200mA
Standby Current: ≤150mA
Working Temperature: -40C~70C
Metal case dimensions: 315mm x 205mm x 55mm
Weight: 0.2Kg (without metal case)
2.7Kg (with metal case & PSU)

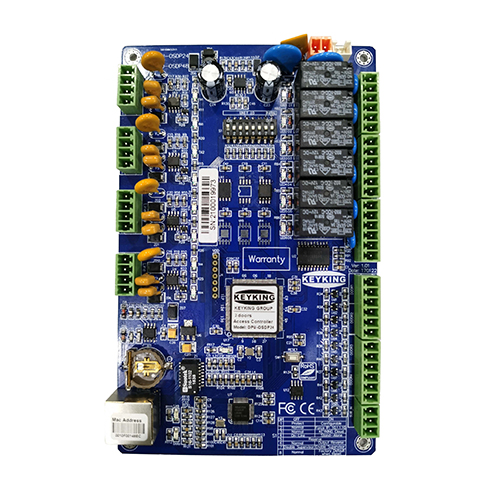

Pictures:
