Description

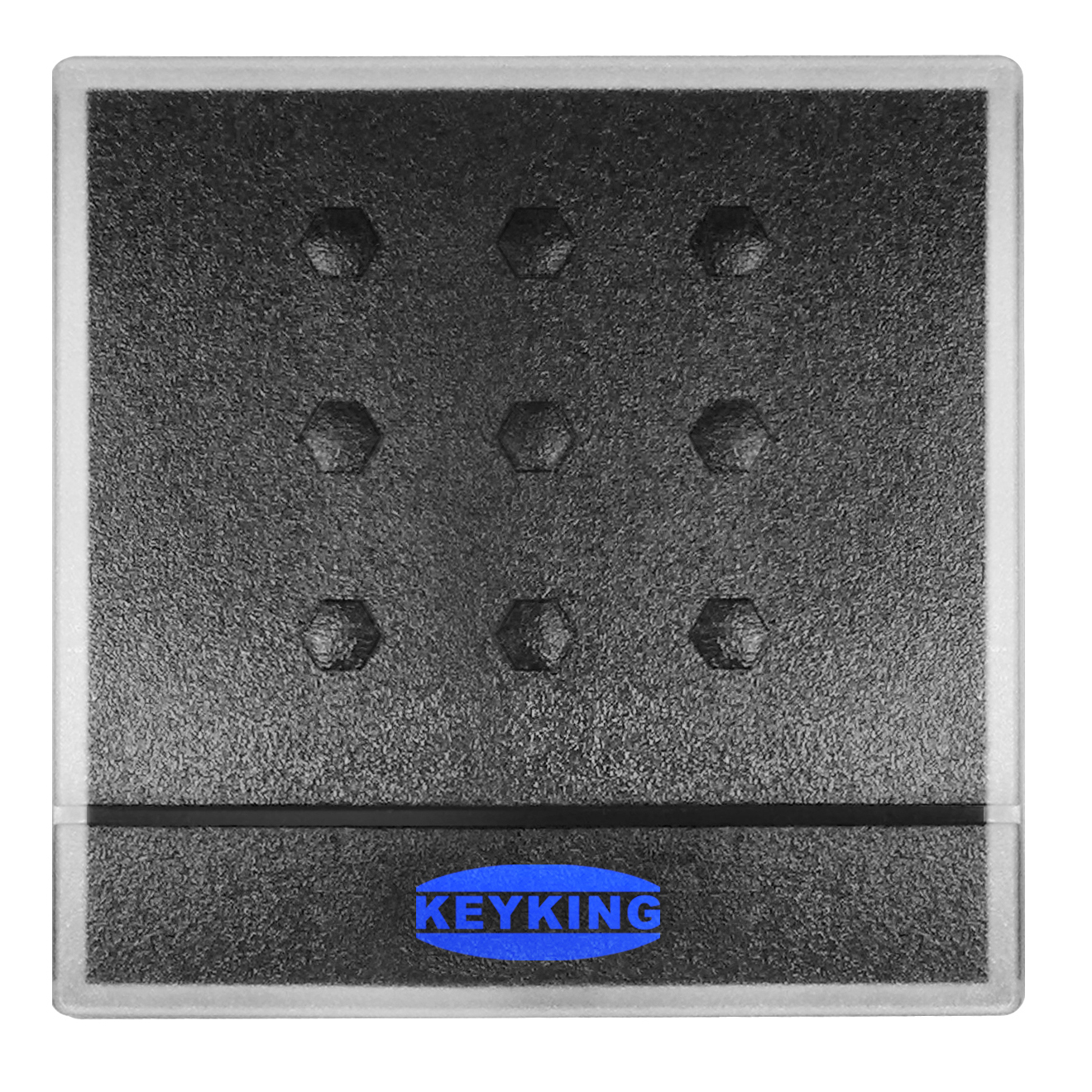

6609S is a practical reader which support ISO15693, ISO14443 protocol with WG26/WG34 format output. It supports Mifare, DesFire and iClass card etc.
Features
·Support ISO15693 and ISO14443 protocol switching by authorization card
·3Des encryption
·Smooth attractive design
·Light and buzzer control indicate the difference between valid and invalid cards
·1 LED with 2 colors and integral sounder for programming
·Manufactured in ISO:9001 registered facility
Specification
| Protocol： | ISO15693 and ISO14443 |
| Frequency： | 13.56MHz |
| Card： | Mifare, Mifare Plus, DesFire, iClass card, I CODE SLIX, I CODE SLIS, I CODE 2, etc. |
| Encode： | 3Des |
| Range： | 10-15cm |
| Vol tage： | 7~15 VDC |
| Current： | ≤60mA |
| Temperature： | -30°C to 65 °C |
| Dimension： | 86mm×86mm×20mm |
