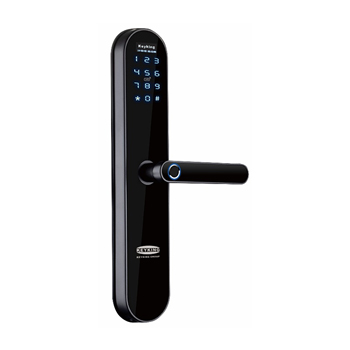

The WFLO-06, (KEYKING, Wireless Series, Fingerprint Lock) is an advanced smart lock for office and house.
Features:
32 bit ST ARM® CortexTM-M3 processor with 16MBit data memory
Wireless to Panel, up to 300m
Fingerprint, PIN, Card, Key
Wireless Door Sensor option
Wireless REX button option
Lock core option: Standard, Wider, Giant
AAA battery, no need power
Energy saved, 12 months
CE, FCC, RoHS approval
Specifications
| CPU： | 32 Bit Processor |
| Capacity： | 4,096 Card/Pin users, 256 pcs templates, 10K transactions |
| Mode： | Fingerprint, PIN, Card, Key |
| Power:： | DC6V, 4 PCS AA batteries |
| Operating Current:： | ≤10mA |
| Standby Current:： | ≤50uA |
| Working Temperature： | -40~70℃ |
| dimensions： | 70mm x 400mm x 40mm |
| Weight： | 1.2Kg |
System diagrams
