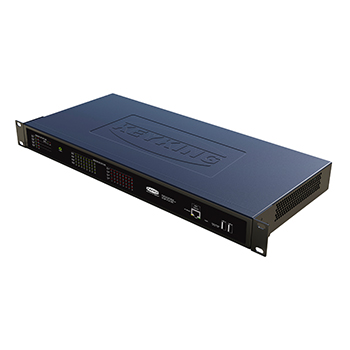

Knet-64 is an advance Hybrid access controller designed to be installed in any standard server cabinet, and provide full access control solution to any organization
Features:
Support up to 64 Doors
RS485 Equipment Compatible
Dual Power input – AC80/250V and PoE+
Backup Battery Monitor
Single-Door Controller Integration
Embedded system, No need Sphinx4
Hardware Features:
 |
Multi work modes: • Knet-64 + 64 units of DPU501 • Knet-64 + 64 units of FPL4-06D |
 |
Flexible RS485 BUS management mode, every unit can be defined. Front Access controller and Standalone Lock compatible |
 |
PoE+ 803.11af: A&B Format (End-Span & Mid-Span) with 600mA On Board and Backup Battery Connection |
 |
Backup battery Monitor and protection: Low battery, stop to use battery when it is almost used up. |
 |
Multi-Credentials, Multi-Factor ID and other High-Security Options. Pay-Per-Swipe and many more capabilities. |
Specifications
| CPU： | A8, 4 Core Processor |
| Cardholder Capacity： | 1,000,000 credentials |
| Log Capacity： | 2,000,000 FIFO Events |
| Communication： | TCP/IP 100MBPS Auto Sensing AES128 encryption |
| PoE+： | 803.11at 802.1x |
| Monitor： | HDMI to monitor |
| Power Output： | 12Vdc, 2A |
| Backup Battery ： | Monitor and protection on low battery |
| DPU Unit / Standalone Lock： | 4 buses, 2 Wires up to 16 locks / DPU501 (Door Process Unit) each bus |
| RS485 External Device： | 1 bus, 2 Wires up to 16 devices |
| Aux Input： | 4 Configurable |
| Aux Output： | 2 SPDT 3A Form C Relays |
| Environment： | 0-95%RH - 20℃ ~ 65℃-4ºF ~ 150ºF |
| Power (non-PoE)： | 100/240VAC |
| Dimensions ： | 1U, W440×H175×D45 |
| Certification： | CE, FCC, RoHS |
