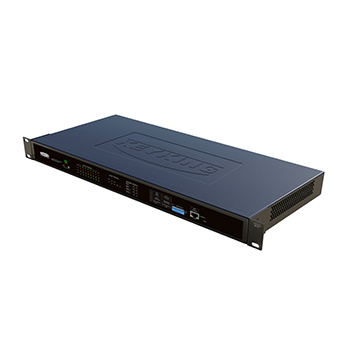

Rack Mount Access Control Appliance MODEL:Knet-08

Rack Mount Access Control ApplianceKnet-08

Listing date:2020-10-1 Updated version:V1.00 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

Knet-08 is an advance Hybrid access controller designed to be installed in any standard server cabinet, and provide full access control solution to any organization

Features:

Support up to 8 Doors 16 Readers
RS485 Equipment Compatible
OSDP Reader Compatible
Dual Power input – AC80-250V and PoE+
Backup Battery Monitor
Single-Door Controller Integration
Fully compatible with Sphinx4 and Secusys2000

Hardware Features:

Multi work modes:
• Knet-08 + 8 units of DPU501
• Knet-08 + 16 units of OSDP Readers
• Knet-08 + 8 units of Wiegand reader + 8 units of OSDP Readers
• any Combination of the modes above.
Flexible RS485 BUS management mode, every unit can be defined.
Front Access controller and Standalone Lock compatible
RS485 Encrypted Readers Compatibility
OSDP Encrypted Readers Compatibility
Compatible with DPU3000 and Kadio system.
PoE+ 803.11af: A&B Format (End-Span & Mid-Span) with 600mA On Board and Backup Battery Connection
Backup battery Monitor and protection: Low battery, stop to use battery when it is almost used up.
Multi-Credentials, Multi-Factor ID and other High-Security Options. Pay-Per-Swipe and many more capabilities.

Specifications



CPU: ARM® Cortex-M4 Processor
Cardholder Capacity: 100,000 credentials
Log Capacity: 200,000 FIFO Events
Communication: TCP/IP 100MBPS Auto Sensing
AES128 encryption
PoE+: 803.11at
802.1x
Power Output: 12Vdc, 2A
Backup Battery : Monitor and protection on low battery
DPU Unit / Standalone Lock: 2 buses, 2 Wires up to 8 locks / DPU501 (Door Process Unit) each bus
OSDP Reader : 1 bus, up to 16 readers
RS485 External Device: 1 bus, 2 Wires up to 8 devices
Door Inputs: 8 REX + 8 Door sensors
Door Relays: 8 SPDT 3A Form C
Aux Input: 4 Configurable
Aux Output: 2 SPDT 3A Form C Relays
Environment: 0-95%RH
- 20℃ ~ 65℃-4ºF ~ 150ºF
Power (non-PoE): 80-250VAC
Dimensions : 1U, W440×H175×D45
Certification: CE, FCC, RoHS
