Secured Operation:
 |
No fingerprint picture stored. Proprietary template algorithm |
 |
Reader Mode: Door operated by door controller in secured area. |
 |
Reader On-Line Mode: no data stored on device |
 |
Simple Mode: Door controlled by FPC3002, operation uninterrupted with or without network |
Hardware Features:
 |
World’s Best Fingerprint Recognition Technology - Cutting-edge algorithm ranked top in Fingerprint field |
 |
Live Biometric Sensor - Live tech Detector, nobody can use flake Fingerprint - Semi-conductor fingerprint sensor, High security level |
 |
Ultra Performance - 1:5,000 matches in 1 seconds |
 |
Twice Recognition - Recognition in Terminal only, Server first Recognition |
 |
QR Code -QR code reader built-in, will transfer QR code to controller |
 |
Dual Frequencies Card -125KHz Proximity card, HID, AWID, KKID; 13.56MHz CPU & Mifare card, Mifare / DesFire, Mifare Sector |
 |
Metal Case - Metal Case, Anti vandal, High Security |
 |
On-Line and Off-Line seamless operation - On-Line: connected to server, Off-Line: Stand-Alone, not connected to server |
Specification

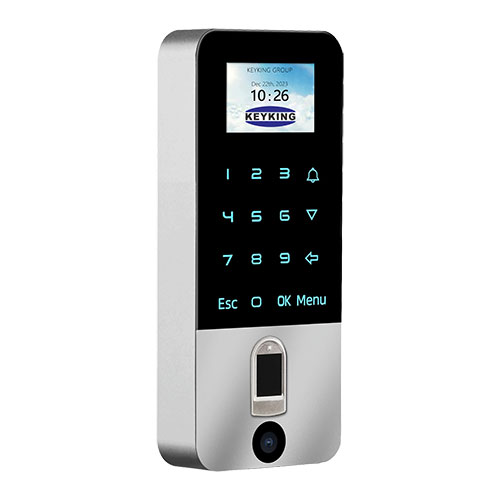

| Description： | Fingerprint reader |
| Interface： | TCP/IP |
| CPU： | 32 bits ARM® Cortex-M4 Processor |
| Fingerprint Sensor： | Semiconductor |
| Dual Frequencies Card： | P: Proximity, HID, AWID, EM, KKID. U: Mifare/DesFire, Mifare Secror, CPU |
| Template Capacity： | 5,000 fingerprint with on device memory. Unlimited using SPHINX-4 On-Line |
| Log Capacity： | 200,000 |
| User Fingerprint： | up to 3 fingerprints per person |
| Communication： | TCP/IP 100MBPS Auto Sensing |
| Authorization Mode： | Card / Fingerprint, Fingerprint, Card + Fingerprint |
| Wiegand： | Wiegand Out |
| OSDP： | OSDP In & Out |
| Tamper： | Switch |
| Operating Temp： | -20’C ~ 50’C |
| Operating Voltage： | 12vDC, 300mA; POE, Power Over Ethernet |
| Dimensions (mm)： | W66 x H161 x D25 |
| Certificates： | CE, FCC, RoHS |
System Configurations:
