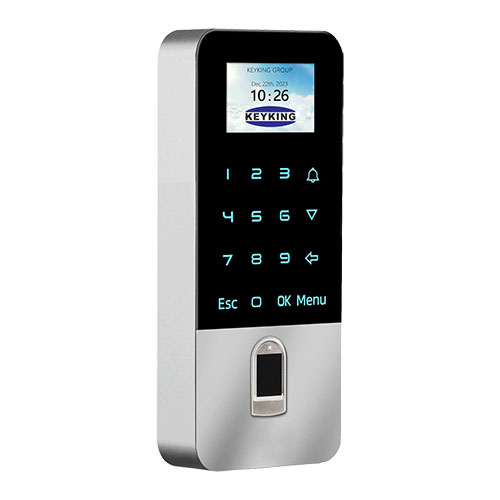

Networked Fingerprint Reader MODEL:FPC3002

Networked Fingerprint ReaderFPC3002

Listing date:2023-06-01 Updated version:V3.02 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

Secured Operation:

  No fingerprint picture stored. Proprietary template algorithm
  Reader Mode: Door operated by door controller in secured area.
  Reader On-Line Mode: no data stored on device
  Simple Mode: Door controlled by FPC3002, operation uninterrupted with or without network

Hardware Features:

World’s Best Fingerprint Recognition Technology
- Cutting-edge algorithm ranked top in Fingerprint field
Live Biometric Sensor
- Live tech Detector, nobody can use flake Fingerprint
- Semi-conductor fingerprint sensor, High security level
Ultra Performance
- 1:5,000 matches in 1 seconds
Twice Recognition
- Recognition in Terminal only, Server first Recognition
Dual Frequencies Card
-125KHz Proximity card, HID, AWID, KKID; 13.56MHz CPU & Mifare card, Mifare / DesFire, Mifare Sector
Metal Case
- Metal Case, Anti vandal, High Security
On-Line and Off-Line seamless operation
- On-Line: connected to server, Off-Line: Stand-Alone, not connected to server

Specification

Description: Fingerprint reader
Interface: TCP/IP
CPU: 32 bits ARM® Cortex-M4 Processor
Fingerprint Sensor: Semiconductor
Dual Frequencies Card: P: Proximity, HID, AWID, EM, KKID.
U: Mifare/DesFire, Mifare Secror, CPU
Template Capacity: 5,000 fingerprint with on device memory.
Unlimited using SPHINX-4 On-Line
Log Capacity: 200,000
User Fingerprint: up to 3 fingerprints per person
Communication: TCP/IP 100MBPS Auto Sensing
Authorization Mode: Card / Fingerprint, Fingerprint, Card + Fingerprint
Wiegand: Wiegand Out
OSDP: OSDP In & Out
Tamper: Switch
Operating Temp: -20’C ~ 50’C
Operating Voltage: 12vDC, 300mA; POE, Power Over Ethernet
Dimensions (mm): W66 x H161 x D25
Certificates: CE, FCC, RoHS
