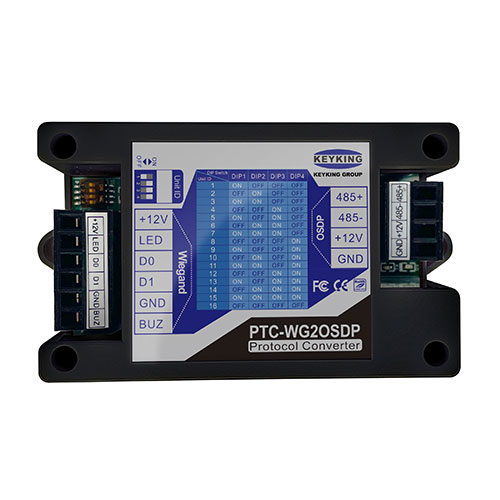

Wiegand to OSDP Protocol Converter MODEL:PTC-WG2OSDP

Wiegand to OSDP Protocol ConverterPTC-WG2OSDP

Listing date:2024-03-01 Updated version:V1.00 Status:On Saling

Datasheet Manual System Configurations PPT

  • Features
  • Technical Specifications
  • FAQ

PTC-WG2OSDP is a highly integrated protocol converter, easy to connect Wiegand reader and OSDP Access Controller.

Feature:

⚫No need separated power supply, will get power from OSDP interface of access controller
⚫ Give power to Wiegand reader
⚫ Three LEDs for status indicator: TX, RX
⚫ Supports 127 controllers
⚫ Unit ID, DIP switch setting
⚫ OSDP can be up to 1,200 meters
⚫ No need driver or configuration, easy to use.
⚫ Baud rate:9600Bps
⚫ High stability and more reliable based on ISO:9001

Application:

⚫ Wiegand reader and OSDP Access Controller.
⚫ Security terminal TCP/IP transfer, such as: Access Control, POS system, CarParking
Industry internet control, building automation and security, remote control.

Specification

CPU: ARM® Cortex-M0
Maximum OSDP distance 1000M
Wiegand distance: 60-300 meters
Voltage: 7-12VDC; Current ≤300mA
Work Temperature: -30°C to 65°C (- 22°F to 150°F)
Humidity: 0--95%
LED light indicator control: Power light +Indicator
Dimension: 82mm (H) x 50mm (W) x 32mm (D)
Weight: 50g

System Configurations:
