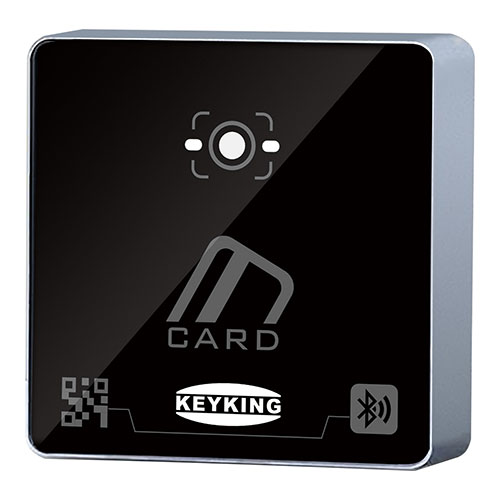

QR500BLE can be easily disinfected in areas where hygiene is important, and has an exceptionally long life due to no moving parts. The unit resists the elements such as glue, oil, rain, ice, snow. Ideal for hospitals, industrial and commercial application.
This dual-application product has advanced reader features for wide compatibility with different controller types，it supports multiple RFID card transmission formats, LED and Buzzer control.
Features:
◆ Smooth attractive design, adapt to all-weather
◆ OSDP & Wiegand output: OSDP as default, Wiegand is an option.
◆ Dual color LED: Blue/Green.
◆ Green connector for wiring.
◆ Supports Multi Prox Cards:
✓ AWID
✓ EM, 2308
✓ HID
✓ KK: KK234, KK250
◆ Supports Multi Smart Cards:
✓ DesFire, NFC
✓ Mifare, Mifare Sector
✓ CPU, KK1208
◆ Built-in QR Code scanner
◆ Bluetooth technology, Shake smart phone to open the door
◆ Manufactured in KEYKING’s ISO:9001 registered facility.
Specifications
| Maximum Read Range*: | 100mm |
| Frequency: | ASK at 125KHz CPU: 13.56MHz |
| OSDP protocol: | V2.17 |
| Multi Wiegand Output: | AWID: Up to 58bits EM, 2308: W26/34 HID: WG26/27/34/35/37 KKID: WG34/50 Mifare: WG34 |
| Operating Voltage: | 7-12VDC |
| Operating Current: | ≤100mA |
| Standby Current: | ≤50mA |
| Working Temperature: | -30°C to 65°C |
| Operating Humidity: | 0 to 95%RH |
| LED Control Input: | Dry Contact, NO |
| Buzzer Control Input: | Dry Contact, NO |
| Dimensions: | 86(L) x 86(W)x 25(D)mm |
| Weight: | 150g |
