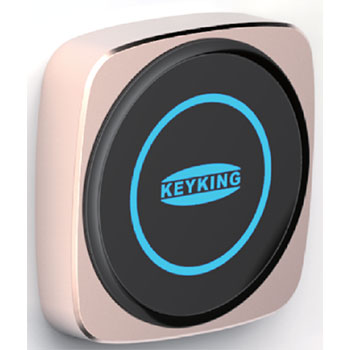

| Metal Case | Optional Color | Touchpad | Art Background Light |
Features
 |
RF Proximity Options - P：HID/Awid/EM/KKID Prox，125KHz；U：Mifare/DesFire, Mifare Sector, CPU |
 |
Metal Case, beautiful and Anti vandal |
 |
Touchpad Button |
 |
Wiegand 26/34Bits Output, can be for most of access controllers |
 |
OSDP (Open Supervised Device Protocol) Output, longer distance to panel, more security |
 |
IP65 waterproof |
 |
Low consumption, save energy, More stable |
 |
Double color LED background light, Blue and Green, easy to operate in dark |
 |
Fit to American electronic Standard back box |
Model Definition
Specification
| Type： | EM、HID、AWID、KKID |
| Cards： | EM4100，HID1386，KKID |
| Range： | 10cm |
| Frequency ： | 125KHz |
| Encryption： | Manchester |
| Voltage： | 7—15VDC |
| Current： | ≤80mA |
| Temperature： | -20’C ~ 70’C |
| Humidity： | 5%--95% |
| Dimension： | 91mm×91mm×30mm |
