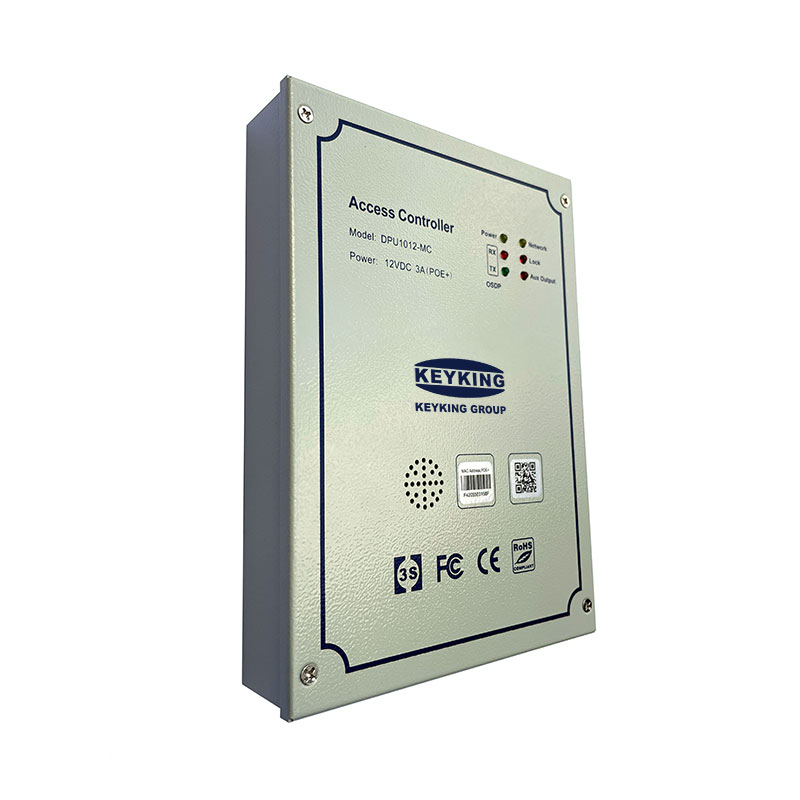

The DPU1012-MC access controller, (DPU1000 series, 1 Door, 2 Readers, compatible with OSDP reader) is an advanced 1 door access controller that support both Wiegand and OSDP reader at the same time. It can be used in a standalone or networked configuration mode. It's compatible with the DPU3000-OS and POE series access controllers, lift controller and I/O controller. The DPU000 series controller also can be connected to a TCP/IP network and work perfect with Sphinx Integration System.
Features
·32 bit ARM® CortexTM-M4 processor
·10/100M based TCP/IP communication
·Power over Ethernet (POE+, 30W)
·Compatible both Wiegand and OSDP reader at the same time
·Compatible with all Wiegand reader formats from 24 to 72 Bits
·24 sets of flow control & Lock down feature
·Supports master + slave cards, Multi groups cards
·Supports double confirmed by center
·Supports user PIN identify
·Supports anti-passback
·Multiple door status working modes
·Long memory storage up to 20 years during power off
·CE, FCC, RoHS Certificated
Specification
| CPU: | ARM® Cortex-M4, 32 bits |
| ROM: | 512M |
| Data Memory: | 512KB RAM+64MB Flash |
| Door Relay (NC/NO): | 1 |
| Door Sensor (NO): | 1 |
| REX: | 1 |
| Auxiliary Output: | 1 |
| Tamper Input: | 1 |
| Auxiliary Input: | 2 |
| Wiegand reader (RJ45 port): | 2 pcs |
| OSDP reader Bus: | 1 Lines (4-pin connector), Maximum Distance: 1200 meters (4000ft); Reader Unit ID is from 1 to 2, and matched with Wiegand 1-2. |
| Buzzer built-in: | Alarm during DFO, DOTL |
| TCP/IP: | 10/100M based |
| Cardholder Capacity: | 10,000, can be expanded to 250,000. |
| Transactions: | 100,000 PCS (2,000,000 Option) |
| Operating Voltage: | 12VDC (±10%) DC input mode:12V DC, 3A POE+ (Battery Low, Battery Lost)；12V DC Output: 1.6A |
| Operating Current: | ≤200mA |
| Standby Current: | ≤150mA |
| Working Temperature: | -40°C~70°C |
| Dimensions: | 185 L x 130 W x 35 H (mm) |
System Diagram
