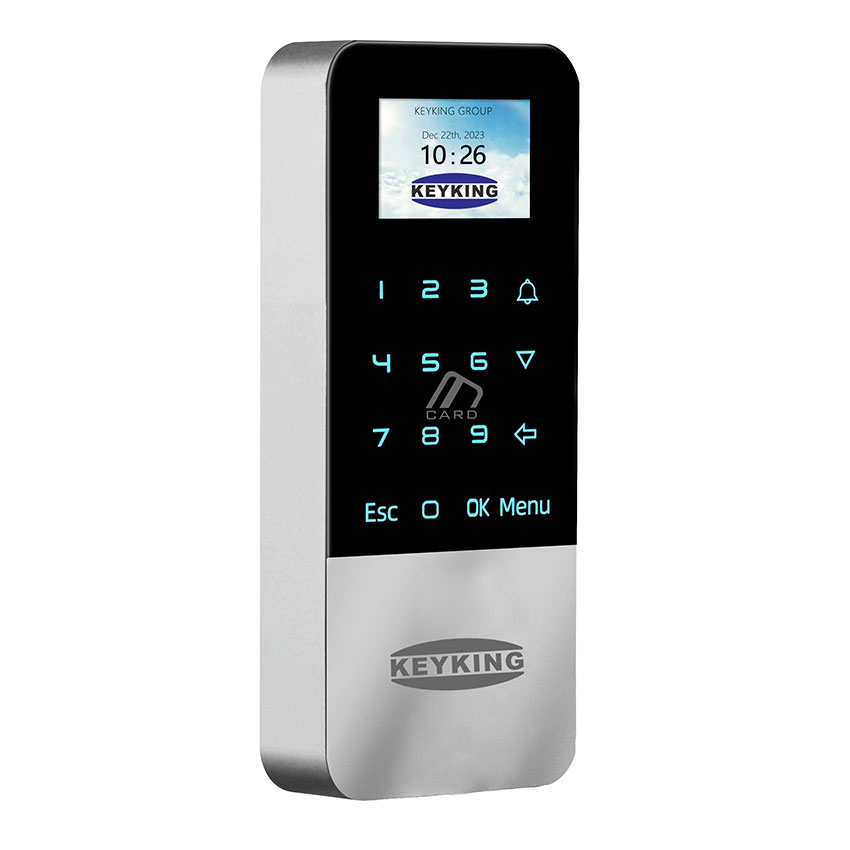

3002K can be easily installed in areas where is important, and has a long life due to no moving parts. The unit resists the elements such as glue, oil, rain, ice, snow. Ideal for hopsitals, industrial and commercial application.
This dual-application product has advanced reader features for wide compatibility with different controller types including multiple RFID card transmission formats, LED & Buzzer control.
Features
⚫ Smooth attractive design, with allweather
⚫ Built-in Proximity, Mifare/DesFire Reader
⚫ Wiegand / OSDP reader output
⚫ Dual color LED: Blue/Green.
⚫ Keypad: TouchPad
⚫ Green connector for wiring.
⚫ Supports Multi Proximity Cards:
✓ AWID
✓ EM, 2308
✓ HID
✓ KK: KK234, KK250
⚫ Supports Multi Smart Cards:
✓ Mifare
✓ Desfire
✓ CPU
⚫ 3002K is manufactured in SECUSYS ISO:9001 registered facility.
Specification
| Maximum read range: | 40-150mm(6.00 in.) |
| Frequency: | 125KHz & 13.56MHz |
| Compatible cards : | EM Proximity card; HID& Awid proximity; U: Mifare, Desfire and CPU cards, ISO14443A |
| Waterproof : | IP64 |
| Operating Voltage: | 7-12VDC |
| Operating Current: | ≤100mA |
| Standby Current:: | ≤50mA |
| Working Temperature: | -30°C to 65°C (-22°F to 150°F) |
| Operating Humidity: | 0 to 95% |
| Door Bell: | Dry Contact |
| LED Control Input: | Dry Contact, Normally Open |
| Buzzer Control Input: | Dry Contact, Normally Open |
| Dimensions: | 161mm (H) x 76mm (W) x 25mm (D) |
| Weight: | 390 g |
