Listing date：2025-12-01 Updated version：V1.00 Status：On Saling

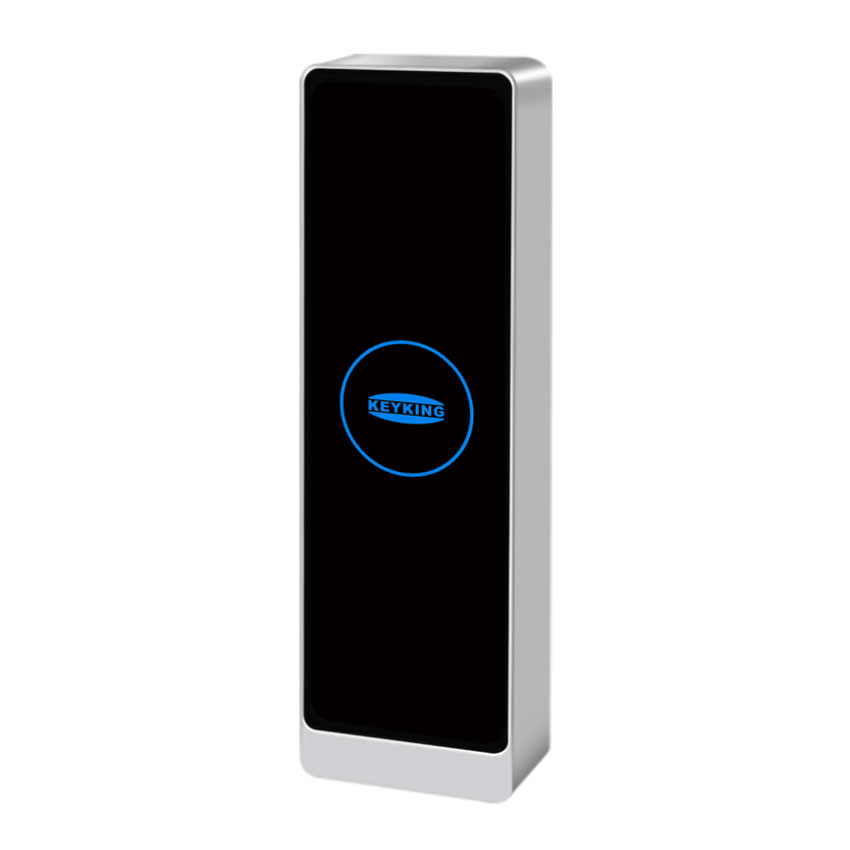

3003 is a dual frequencies reader, will work under glue, oil, rain, ice, snow environment. It often is installed in office, hospital, power station. It supports most of proximity card in the world, and work with DesFire standard also. It will give Wiegand and OSDP security output. 3003 is very good for elevator controller, because the distance can be up to 1200 meters.

Features

⚫ Smooth attractive design, with allweather
⚫ NFC technology
⚫ Output: Wiegand & OSDP
⚫ Dual color LED: Blue/Green.
⚫ 22AWG, 10 wires.
⚫ Manufactured in KEYKING’s ISO:9001 registered facility.

Specification

Read range	30-150mm
Distance to panel	Wiegand≤150m OSDP≤1200m(9600BPS)
Frequencies:	125KHz &13.56MHz
Supports Proximity Card:	Prox EM4100, HID, AWID, SecuProx Mifare, Desfire, CPU
Operating Voltage:	7-12VDC
Operating Current:	≤100mA
Standby Current:	≤50mA
Working Temperature:	-30°C to 65°C
Operating Humidity:	0 to 95%
Dimensions:	45×148×21mm
Weight:	290 g (0.63 lbs)
