Listing date：2025-12-01 Updated version：V1.00 Status：On Saling

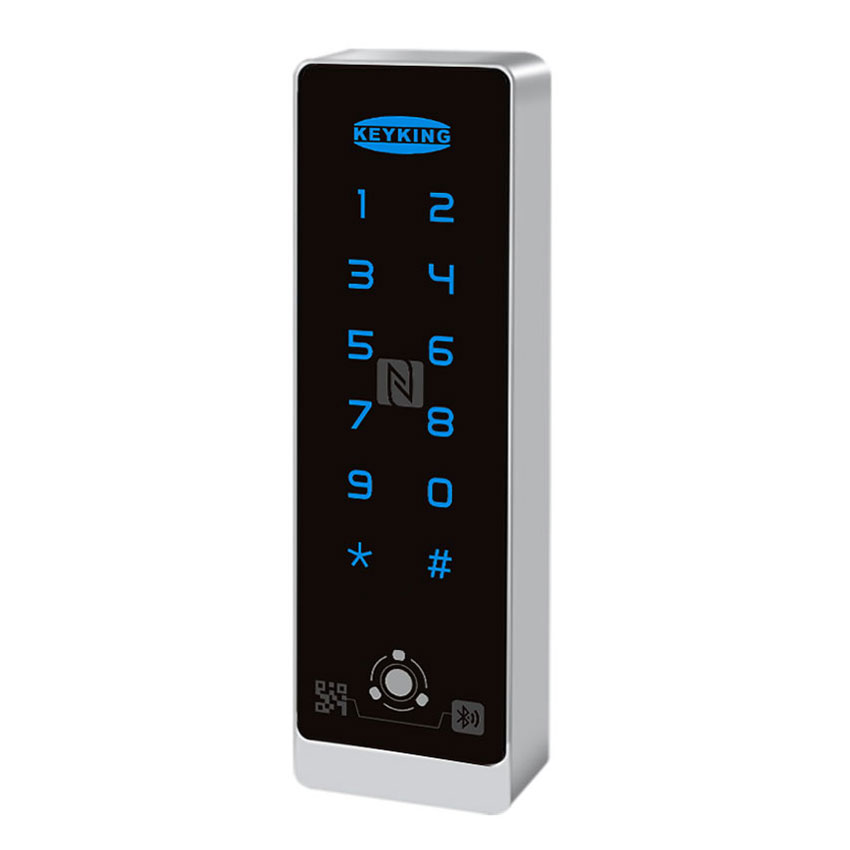

It is a dual frequencies reader with Bluetooth technology, will work under glue, oil, rain, ice, snow environment. It often is installed in office, hospital, power station.
There is a keypad on it, so it can be for more security project also. It support most of proximity card in the world, and work with DesFire standard also. It will give Wiegand and OSDP security output.
It is very good for elevator controller, because the distance can be up to 1200 meters.

Features

⚫ Dual application: Reader & Standalone
⚫ Smooth attractive design, with allweather
⚫ 3×4 standard keypads
⚫ Bluetooth: Bluetooth Low Energy (BLE);
⚫ KeyPass & KeyConfig: Mobile Access Credential, Unique Security Feature
⚫ NFC technology
⚫ Qr Code compatible
⚫ Output: Wiegand & OSDP
⚫ Dual color LED: Blue/Green.
⚫ 22AWG, 10 wires.
⚫ Manufactured in KEYKING’s ISO:9001 registered facility.

Specification

Read range	30-150mm
BLE distance	≤15m
Distance to panel:	Wiegand≤150m OSDP≤1200m(9600BPS)
Frequencies:	125KHz &13.56MHz
Supports Proximity Card:	Prox EM4100, HID, AWID, SecuProx Mifare, Desfire, CPU
Lock Relay:	12V, 3A
Operating Voltage:	7-12VDC
Operating Current:	≤100mA
Standby Current:	≤50mA
Working Temperature:	-30°C to 65°C
Operating Humidity:	0 to 95%
Dimensions:	45×148×21mm
Weight:	290g
